Dune HD Pro 4K II

€299,00

Discontinued. See new models:

Dune HD Pro Vision 4K Solo

Dune HD Real Vision 4K




World's first 4Kp60 HDR10+ Media Player and Android Smart TV box on Realtek RTD1619.



High-End video quality, HDR10+, YouTube 4K HDR, HD audio, 1Gbit Ethernet, WiFi 802.11ac 2T2R, USB 3.0, SATA, HDMI input, 4GB RAM, 32GB flash.


Key Features

Improvements over the previous model Pro 4K


RTD1619 media processor

  • Dune HD Pro 4K II is the world's first media player on the newest RTD1619 media processor – the newest, the most advanced and the most powerful media processor from Realtek.

HDR10+

  • The media player supports not only HDR technology (supported by the previous generation of media players), but also the most latest and advanced HDR10+ technology from Samsung. In conventional HDR technology, the brightness range is set at the beginning of the film and does not change during the film, so completely dark and completely bright scenes may have insufficient detail. In the latest HDR10 + technology, the brightness range can vary from frame to frame, so the maximum picture detail is provided even in scenes that contain only dark or only light elements.

VP9 profile 2 and YouTube 4K HDR support

  • The media player supports not only the old VP9 video codec (which does not support HDR), but also the newest VP9 profile 2, which supports HDR and which is used in YouTube for 4K HDR content. Most other media players do not support it.

+77% faster CPU

  • The media player has a 6-core ARM A55 CPU – which is +77% faster than 4-core ARM A53 used in the previous model Pro 4K.

+50% faster GPU

  • The media player has the new GPU Mali-G51 – which is +50% faster than Mali T-820 used in the previous model Pro 4K.

4 GB RAM

  • This is 2x more than in the previous model Pro 4K, and gives better performance for the most heavy apps.

32 GB flash

  • This is 2x more than in the previous model Pro 4K, and gives more space for most heavy apps and internal storage.

Android 9

  • For Android applications, Dune HD Pro 4K II uses a newer Android version 9.0 instead of Android 7.1 used in the previous model Pro 4K. This provides better support for the newest Android apps.

2x USB 3.0 ports

  • Dune HD Pro 4K II has two USB 3.0 ports. The previous model Pro 4K has only one USB 3.0 port.



Other key advantages over competitors


Best-in-class movie ISO/folder structure playback

  • Realtek-based Dune HD media players have the best-in-class support for playback of movie ISO/folder structures, including full support for 4K, 3D, HD audio. Movie ISO/folder structures can be played from any source - local drive (USB, SATA) or network drive (SMB, NFS). A special engine helps to ensure smooth playback of the entire movie w/o any audio/video interruptions even when playing movies with complicated structure.

    Flicker-free framerate/resolution switching

    • Dune HD media players implement its own advanced flicker-free approach for automatic framerate and resolution switching, which performs video mode switching before the start of file playback (rather than after). Most other Realtek-based media players perform video mode switching after the start of file playback, which causes unpleasant flickering.

    Professional-grade controls for video output parameters

    • Advanced setup controls allow professional users and installers to fine tune the video output parameters in the best way for a particular setup. In particular, it is possible to configure what chroma subsampling modes should be used for each individual HDMI video mode. The majority of competing media player models do not have such controls.

    Widevine L1 and premium video services

    • Support for Widevine Level 1 DRM (the most advanced DRM level) makes it possible to watch premium online video services with HD and Ultra HD video quality. Media players w/o Widevine Level 1 support can only output Standard Definition video in such services.

    Linux-based Dune HD OS

    • The media player runs a unique hybrid OS which consists of a Linux-based Dune HD OS (to ensure stable operation and smooth media playback) and Android OS (to support Android applications), which run simultaneously.

    Dune HD Android Playback Accelerator technology

    • This unique technology intellectually manages the resources of Android OS to minimize the influence of Android OS on the media playback engine and ensure smooth and high-quality video and audio playback.

    Dune HD ecosystem

    • Based on open Dune HD SDK and APIs, various TV-optimized applications, plugins, extensions, GUI skins, collection management solutions, integrations with home automation systems are available via official Dune Store, 3-party vendors, and from the huge user's community.

    Dune HD UI

    • The famous Dune HD UI, developed and polished during more than 12 years, specially optimized for the use on TV screens and operation via a standard remote control, tuned for the best possible usability, makes it easy and convenient to use the media player.

    Dune HD movies organizer and movies encyclopedia

    • “My Collection” function organizes a user's movies collection into a nice looking catalog. A comprehensive movies encyclopedia provides the information about hundreds of thousands of movies with detailed descriptions, posters, cross-links between movies and persons, trailers, direct links to online video services, etc. Advanced file browser automatically recognizes movies.

    Dune HD mobile app

    • The unique Dune HD mobile app (Dune Control) for iOS and Android mobiles devices provides full access to all functions of Dune HD media player in a very convenient and powerful way. It fully replaces the standard IR remote control, allows browsing and choosing the media content directly on your mobile device (the menu shown on the mobile device mirrors the menu shown on the TV screen), and includes Now Playing section for convenient media playback control.

    Smart home

    • The media player provides the powerful IP Control interface and has a lot of options for integration into Smart Home and Home Automation systems, such as Control4 and Crestron.

    Proven history of software updates during a very long period

    • Dune HD is known for its reputation to listen to user's feedback and provide software updates for many years. For example, for some old models, software updates with additional functions are provided for more than 10 years already. This is possible due to the unique "single code base" approach, which means that firmware for all Dune HD models is based on the same software (continuously developed and improved according to user's feedback).

    Other key features


    HD audio support

    • The media player can output HD audio to the A/V receiver.

    Full 3D support

    • Support for Side-by-side, Top-to-bottom and MVC formats ensures perfect playback of Full HD video in 3D.

    External SATA port

    • The media player has an external SATA port (data and power connectors) which can be used to directly connect an external SATA HDD to the media player (w/o the need to use a USB adapter), and enjoy the faster possible performance. It also can be used to connect an optical disc drive.

    Optical disc drive support (USB and SATA)

    • You can connect an external USB or SATA optical disc drive to play media files from optical discs (not encrypted only).

    Dual-band 802.11ac 2T2R Wi-Fi and 1Gbit Ethernet

    • The media player is equipped with dual-band Wi-Fi supporting 802.11b/g/n/ac (2.4 GHz + 5.0 GHz), with 2T2R support (double performance) and two external Wi-Fi antennas, which allows you to play a high-bitrate content through the air. The 1Gbit Ethernet port allows you to get maximum performance with a wired connection.

    Built-in Bluetooth

    • The built-in Bluetooth interface allows you to easily connect various remote controls, wireless keyboards, mice, joysticks, audio speakers, headphones, headsets and other devices.

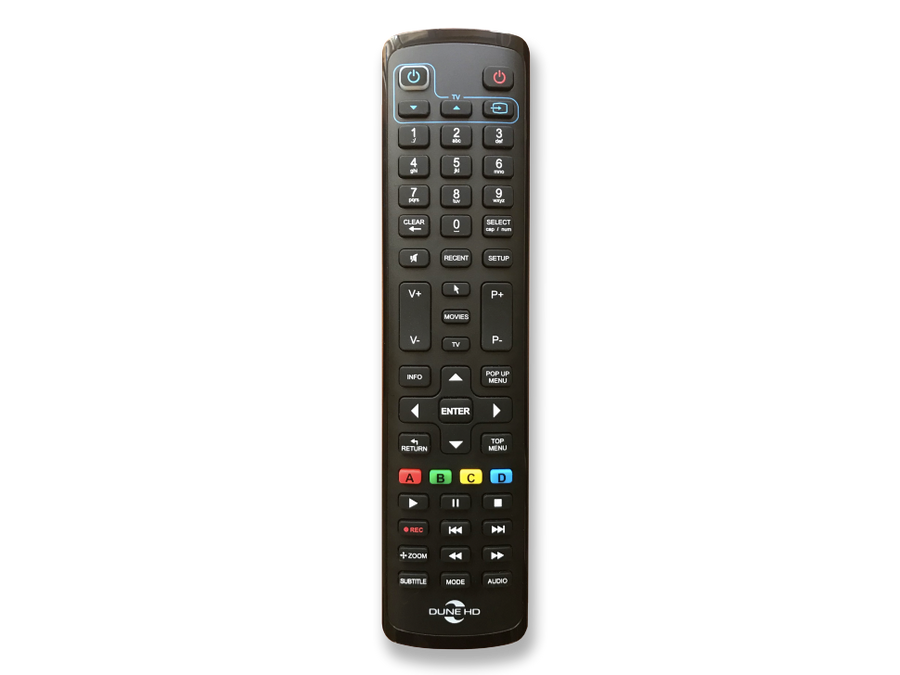

    Learning remote

    • The included remote has IR learning function that allows you to configure the remote to control not only a media player, but also a TV or other equipment.

    Specifications

    Media processor: Realtek RTD1619 SoC

    RAM: 4 GB

    Flash memory: 32 GB

    Casing: metal

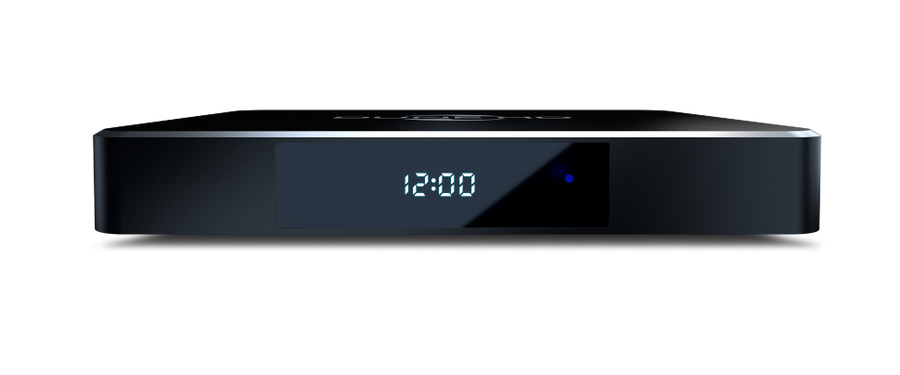

    Front panel display: multi-segment display

    Power supply: external, DC 12V (3A), AC 100-240V

    Dimensions (W x H x D): 187mm x 29mm x 140mm

    OS: Linux-based Dune HD OS + Android 9.0


    Connectivity

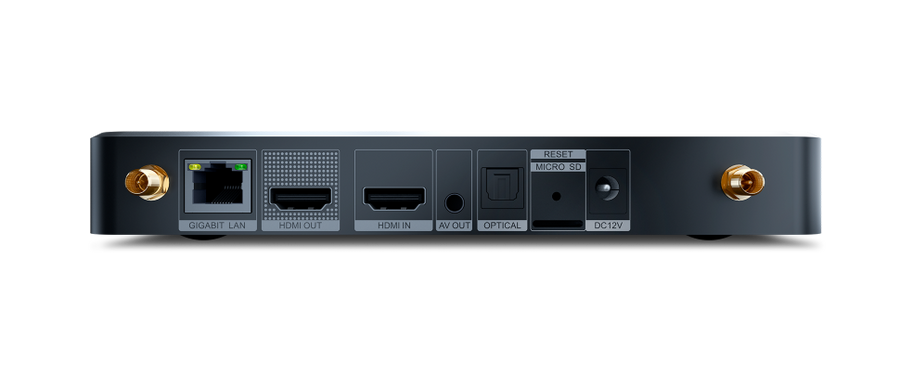

    Connectors: external SATA HDD (data + power), 2x USB 3.0, 1x USB 2.0, micro SD card slot, HDMI 2.0b, composite video and analog stereo audio (via 3.5mm A/V connector), optical S/PDIF, Ethernet 10/100/1000 Mbit/s, HDMI 2.0 input, 12V DC IN power connector, 2x external Wi-Fi antenna connectors

    Media sources: external HDDs (USB, SATA), USB devices (USB flash drive, USB card reader, etc), external optical disc drives (USB, SATA), PC and NAS in local network (SMB, NFS, UPnP/DLNA, HTTP), other Internet and local network media sources

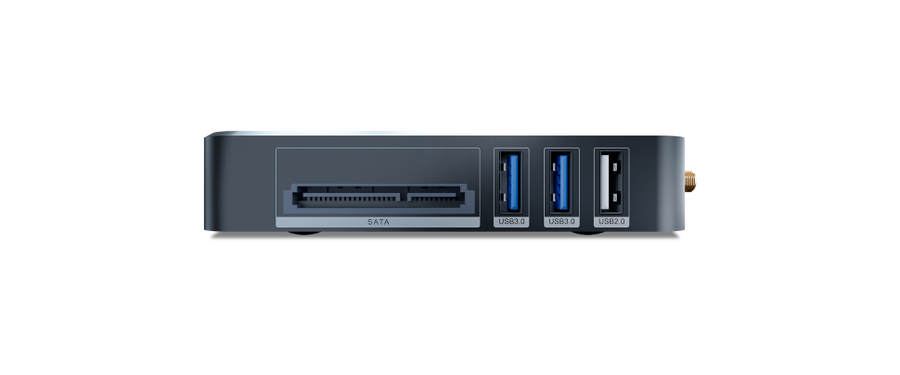

    External SATA port (data+power): connect an external SATA HDD or SATA DVD/BD drive

    2x USB 3.0 host: enjoy the great performance of USB 3.0

    1x USB 2.0 host: conveniently connect USB HDDs, USB flash drives, USB card readers, USB DVD/BD drives, USB hubs and other USB devices

    Micro SD card slot: conveniently use SD memory cards

    Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write), exFAT (read-write), HFS/HFS+ (Mac OS Standard/Extended) (read-only), BTRFS (read-write)

    Optical disc drive support: connect an external optical disc drive to play media files from optical discs (not encrypted only)

    HDMI 2.0b output: output any video signal up to the most modern 4Kp60 HDR

    A/V output (composite video + analog stereo audio): connect to any A/V equipment

    Optical S/PDIF: output digital audio to A/V receiver or external DAC via S/PDIF

    Ethernet 10/100/1000 Mbit/s: ensure the best performance when connecting to your local network via cable

    Wi-Fi dual-band 802.11b/g/n/ac 2T2R, 2T2R: ensure the best performance when connecting to your local network via air

    Bluetooth 4.x: connect Bluetooth remote controls, wireless keyboards, mice, joysticks, audio speakers, headphones, headsets and other devices.

    HDMI 2.0 input: connect an external HDMI source and display it fullscreen (non-protected video w/o HDCP, PCM audio)

    Power input: 12V DC



    Media Playback

    4K HDR10+ video playback: decode 4K video content in various popular formats including H.265 10-bit and VP9 profile 2 up to 4Kp60 HDR and HDR10+

    4K HDR10+ video output: output 4K content up to 4Kp60 HDR10+ with pixel-to-pixel precision to 4K TV

    HEVC: play video encoded using the latest H.265 codec. 2x picture quality increase over H.264

    VP9 profile 2: play YouTube 4K HDR content

    HDR: play video in the newest HDR (High Dynamic Range) format. Superb picture contrast and details

    HDR10+: the most latest and advanced HDR technology from Samsung. More details in bright and dark scenes

    10-bit color encoding: play video encoded using the latest standards, with support for 1 billion of colors

    Video output framerate: automatic (according to the played content) and manual; 23.976 Hz support

    Auto framerate: output video with original framerate to ensure absolute smooth playback for all kinds of content

    Auto resolution: output video with original resolution for best picture via Hi-End external video processing

    True 24p output: ensure perfectly smooth playback of Hollywood movies due to full support for 23.976 framerate

    Flicker-free auto framerate/resolution switching: HDMI video mode switching exactly before playback start, not after

    Professional-grade controls for video output parameters: detailed configuration of HDMI chroma subsampling modes

    Best-in-class support for movie ISO/folder structures: support for 4K, 3D, HD audio, smooth playback of movies with complicated structure

    Advanced media player: play video in MKV and other modern video file formats, including top quality 4K and HD with very high bit rates (100 Mbit/s+)

    Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, ISO, folders

    Video codecs: MPEG2, MPEG4, XVID, WMV9, VC1, H.264, H.265, H.265 10-bit, VP9, VP9 profile 2; support for very high bitrate video up to 100 Mbit/s and higher

    Video upscaling: high-quality upscaling of SD video content to 4K, Full HD 1080p and other HD resolutions

    3D video: play all popular 3D video formats, including MVC, Side-by-Side, Top-and-Bottom

    HLS: ensure the best quality of Internet video using Apple HLS adaptive bitrate streaming protocol

    DASH: get access to the newest Internet video services using MPEG-DASH adaptive bitrate streaming protocol



    HD audio: output HD audio to your A/V receiver

    Hi-End music: play music files in various Hi-End audio formats: 192/24, FLAC, Monkey's Audio APE, WAV/PCM, Super Audio CD (stereo and multichannel), etc

    Super Audio CD: play top quality SACD music files in various formats (stereo and multichannel)

    Audio codecs: MPEG-1/2 layer I/II/III, AAC, LPCM, WMA, WMAPro, FLAC, multichannel FLAC, Vorbis, WavPack, APE (Monkey's Audio), ALAC (Apple lossless), SACD DSD (stereo), AC3, DTS

    Audio file formats: MP3, MPA, M4A, AAC, WAV, WMA, FLAC, Ogg/Vorbis, WavPack, APE (Monkey's Audio), ALAC (Apple lossless), SACD ISO, SACD DSF, SACD DFF, AC3, DTS, DTS-WAV


    Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (ISO, TS, MKV)

    Online subtitles: Automatically download subtitles from Internet

    Picture file formats: JPEG, PNG, BMP, GIF

    Photo viewer functions: slideshow, transition effects, picture rotation, zoom, browse playlist, repeat, shuffle

    Playlist file formats: M3U, PLS, CUE

    Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write), exFAT (read-write), HFS/HFS+ (Mac OS Standard/Extended) (read-only), BTRFS (read-write)

    Widevine Level 1 DRM: enjoy premium online video services with High Definition video quality


    Smart Home and Home Automation

    IP control: integrate the media player with various Home Automation systems via network

    Control4: integrate seamlessly into Smart Home installations based on Control4 technology via ready-to-use Control4 driver

    Crestron: integrate seamlessly into Smart Home installations based on Crestron technology via ready-to-use Crestron driver

    iOS and Android mobile apps: control the media player via the powerful Dune Control mobile application


    Package Contents

    Dune HD Pro 4K II x1

    Dune HD IR Remote x1 or Dune HD BT Remote x1

    Batteries AAA x2

    Power supply 12V 3A x1

    PC power cord EU plug x1

    A/V cable 3.5mm-3RCA x1

    HDMI cable x1

    SATA cable x1

    Quick installation guide x1



    Notes
    Some of the listed features may not be available in the factory firmware and may require to install a firmware update. The features marked with (*) are in development and are expected to become available in future.

    The support for particular media formats and codecs and playback functions may depend on the used application; some formats and codecs and playback functions -- in particular those marked with (**) -- may be supported only in specific applications and may require to install a specific application.

    Compatibility of the player with particular media content (files, streams, etc) may depend on specifics of media content encoding, specifics of the configuration of the player and player-connected equipment, and other factors; compatibility of the player with arbitrary media content is not guaranteed.

    Compatibility of the player with particular applications (Dune HD plugins or Android applications) may depend on specifics of the application, particular usage scenario, and other factors; compatibility of the player with arbitrary applications is not guaranteed.

    Compatibility of the player with particular equipment (A/V equipment, network equipment, storage devices, etc) may depend on particular equipment model, specifics of equipment installation, specifics of the configuration of the player and equipment, and other factors; compatibility of the player with arbitrary equipment is not guaranteed.

    Product images may be imprecise and may have some differences in comparison with the real look of the product.

    Accuracy of the information is not guaranteed; the information is subject to change w/o notice.


    DUNE HD Interface



    Famous Dune HD interface: convenient and smooth interface optimized for TV screens and remote controls, developed and polished during many years; now even more smooth than before and with additional features

    Direct network access: directly browse and play files stored on PC or NAS in local network via SMB, NFS, UPnP/DLNA

    My Collection: organize your movies and TV series into a nice-looking and convenient catalog

    Movies catalog: find any movies, even those which are not in your collection, via common unified catalog with detailed movie descriptions, trailers and cross references between movies and persons

    Direct links to online video services: quickly start watching a movie via connected video services directly from the movies catalog

    Automatic movie recognition: easily view movie descriptions and find related movies when browsing your movies in the file browser

    Advanced file manager: easily manage (copy, move, delete, rename, organize, sort) files directly in the file browser

    Favorites menu: easily access your favorite items: files, folders, movies, persons, applications, etc

    Auto start: configure which favorite item to open automatically on player boot

    Recent menu: see what you played recently and easily resume the playback or switch between latest items

    TV browser: watch TV channels (Internet TV, when configured) via a convenient Dune HD TV Browser

    Extended EPG: when watching TV channels, see extended EPG information automatically downloaded from the Internet (when available for a TV channel)

    Links to Movies catalog from Extended EPG: easily view movie descriptions and find related movies, watch trailers, watch movies via connected online video services

    Playlists: build playlists from selected items and folders or load playlists from files

    Customizable user interface: enjoy a variety of user interface skins, customization options and Jukebox applications

    Jukebox applications: use various 3-party Jukebox applications to organize your media collection into a convenient user interface

    Dune HD applications: Easily install various applications and plugins with additional functionality from Dune Store or third parties

    Plugins and extensions: full support for Dune HD PHP plugins API, Dune HD skins, dune_folder.txt mechanism

    Android applications: install any Android applications via App Store or from APK file, and launch them directly from Dune HD interface

    Background playback: play music, radio, TV channel or video in background while navigating through any menus of Dune HD interface or even when using any Android applications

    Internet browser: view Internet websites on your TV, including video playback directly on web sites (via Chrome web browser)
